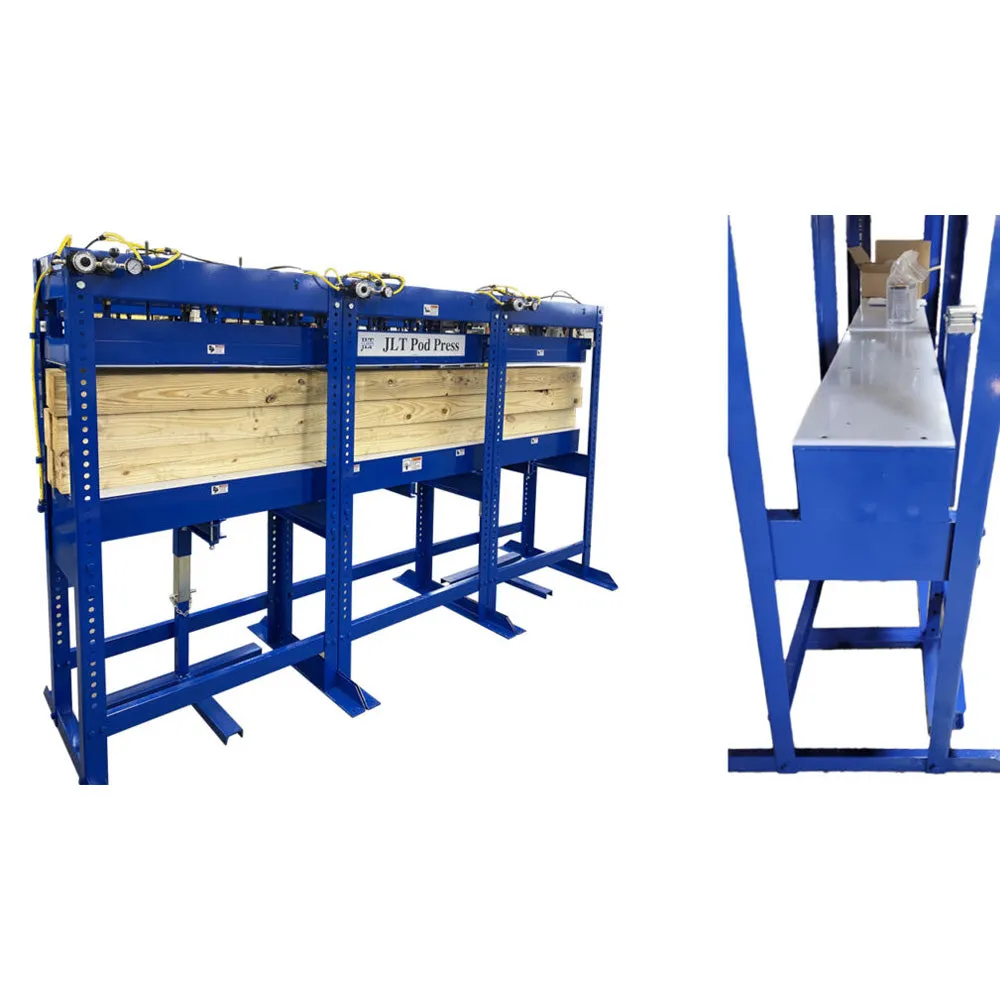

The Mini Pod Press is a high-pressure, cold press laminating machine. It features individually controlled top platens and a bottom platen adjustable at 1-1/2″ increments to a maximum opening of 40″. The Mini Pod Press allows you to face glue a variety of solid wood components up to 12" wide.

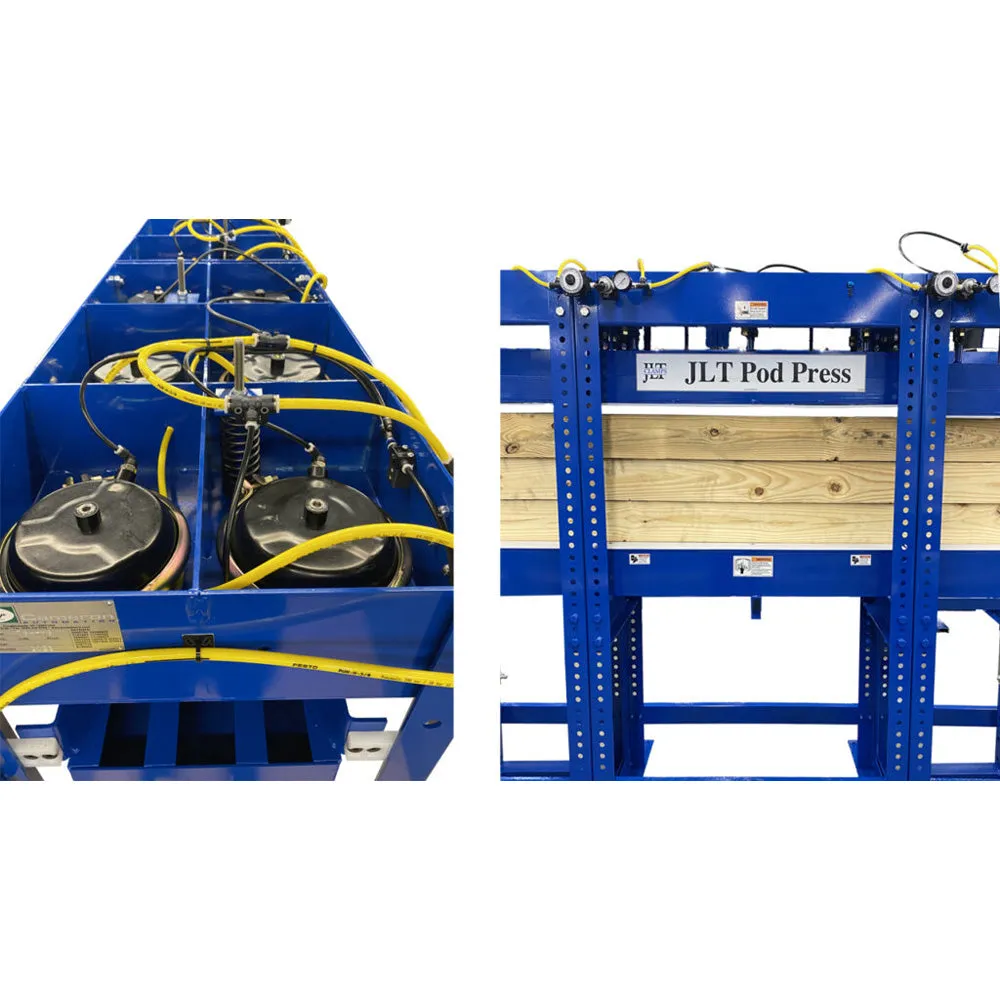

Air pressure and alignment are carefully controlled via dial regulators on each individual platen and air can be locked in for any length of time through the use of a hand-operated level valve. The upper streel platen has a 2" stroke when air is activated. The Mini Pod Press is powered by a total of (18) 30 in2 diaphragm cylinders.
[TABS]
Features
- Individually-controlled top platens and adjustable bottom platen made of 100% steel construction

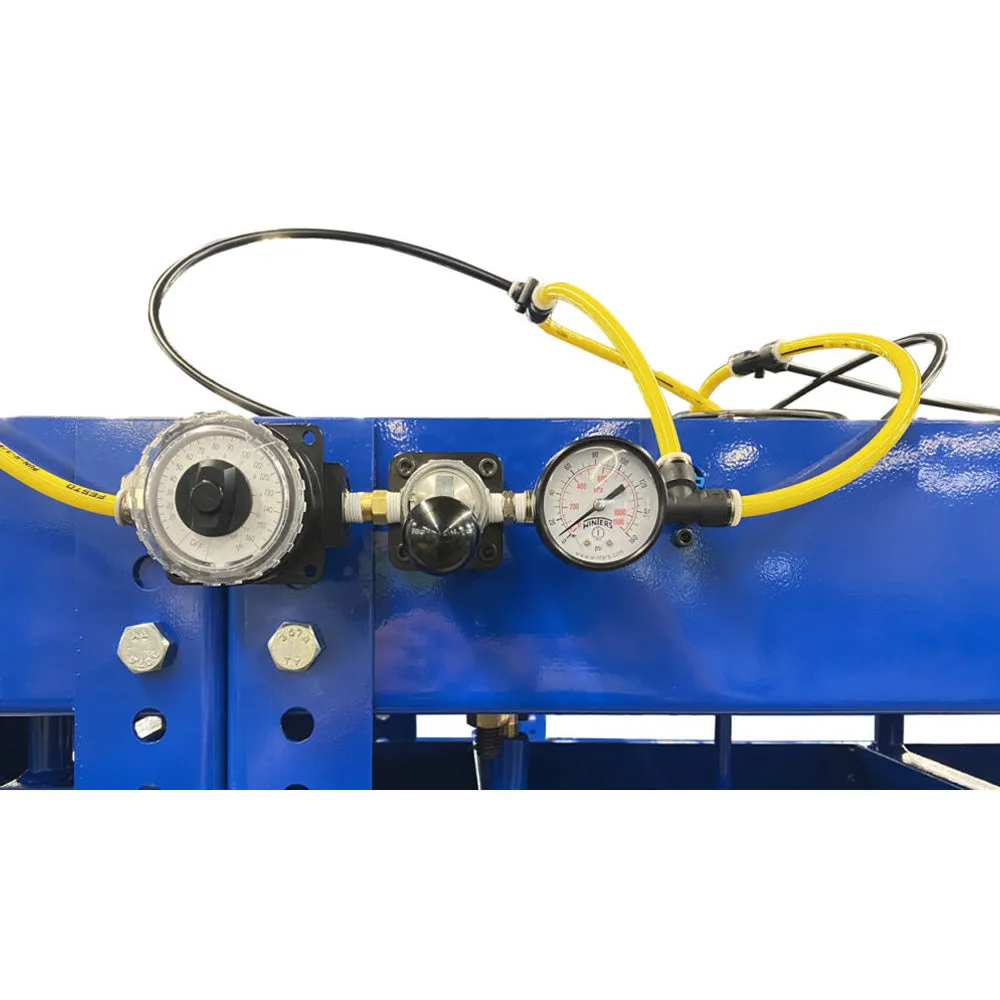

- Air pressure and alignment are controlled via dial regulators on each platen
- Powered by (18) 30 in2 diaphragm cylinders
- 30 Tons of clamping pressure @ 120 PSI
- Stack multiple components up to 12" wide
- Pyramid different sized glue ups
- Modular design
Specs
Material capacity (W x L): 12" x 42"
Clamping pressure: 30 Tons @ 120 PSI
