Karcher High Pressure Cleaner HD 7/17 M Cage *EU 400V 3PH 50HZ
HIGH PRESSURE WASHER HD 7/17 M Cage
Up to 700 litres of water per hour for optimum cleaning results: powerful HD 7/17 M Cage high-pressure cleaner with steel tubular frame, three-phase motor and automatic pressure relief.

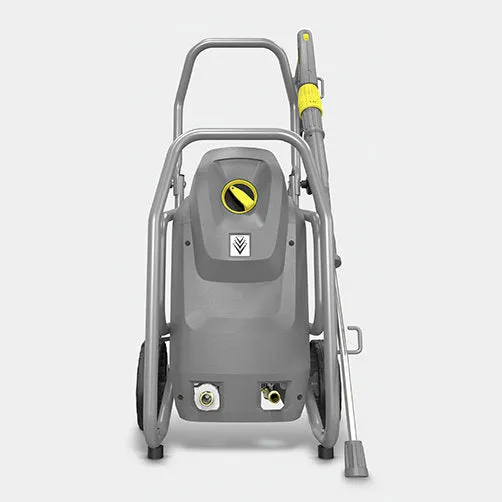

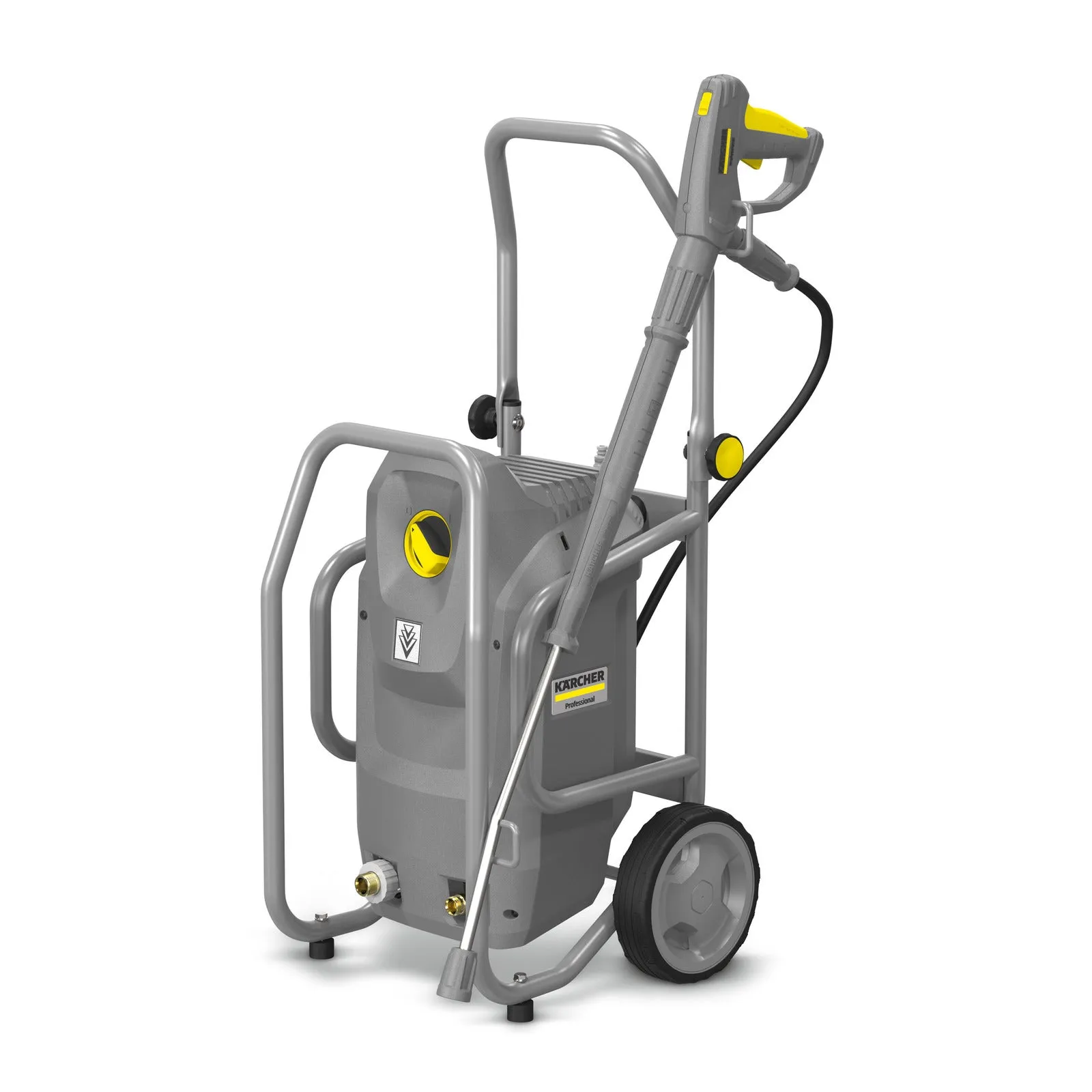

The HD 7/17 M Cage ST with three-phase motor is a mobile and highly robust high-pressure cleaner fitted with a powder-coated steel tubular frame which has been designed for vertical or horizontal use under tough working conditions. The new 3-piston axial pump with brass cylinder head is easily accessible thanks to the service-friendly machine design and enables 20% higher cleaning performance and energy efficiency. An additional water fine filter is installed to protect the pump, while automatic pressure relief prevents loads on the pump and other high-pressure components in stand-by operation. Our innovative EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero as standard, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity.
FEATURES AND BENEFITS
Durable and robust

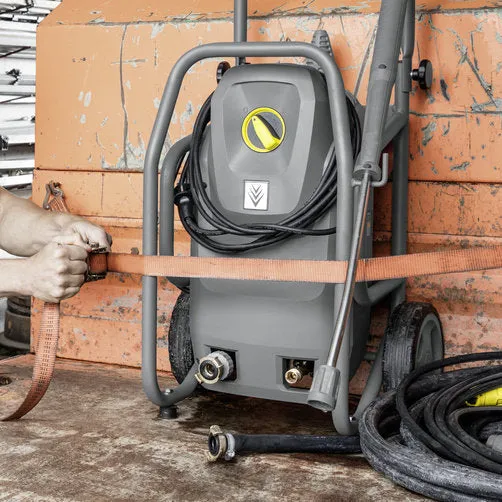

Sturdy tubular steel frame protects all components. The tubular steel frame is also suitable for simple fastening and lashing of the machine in the service vehicle. Robust plastic chassis reliably protects the pump against damage and dirt.High-quality equipment
Automatic pressure relief for protecting the components extends their life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head.Easy servicing
Easy access to the cylinder head through the open part at the bottom of the machine. Quick access to the electrical box by simple removal of the machine cover. Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.Increased energy efficiency
- Newly developed 3-piston axial pump with considerably reduced flow and pressure losses.
- 20% increase in cleaning performance and energy efficiency.
Effortless and time-saving solutions
- Fatigue-free EASY!Force high-pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Flexible operation
- For vertical and horizontal operation.
Clever accessory storage
- Holder for the cup foam lance.
- EASY!Lock TR20 permits storage of the Power nozzle or a surface cleaner directly at the machine.
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 700 |
| Working pressure (bar/MPa) | 170 / 17 |
| Max. pressure (bar/MPa) | 255 / 25,5 |
| Connected load (kW) | 4,2 |
| Connection cable (m) | 5 |
| Weight (with accessories) (kg) | 36,6 |
| Weight incl. packaging (kg) | 40,9 |
| Dimensions (L × W × H) (mm) | 420 x 460 x 970 |
Equipment
- Spray gun, EASY!Force
- High-pressure hose, 10 m, Premium quality
- Spray lance, 840 mm
- Power nozzle
- Pressure switch-off
Why Kärcher makes a difference Whether gentle treatment or powerful cleaning – Kärcher high-pressure cleaners offer the perfect solution for every cleaning task. Where previously dirt dominated, now there is nothing but cleanliness. Kärcher adds value to your environment and gives back value: old becomes new, shabby becomes chic. Passionate engineering, the highest quality requirements and decades of experience in the development of innovative high-pressure cleaners make this possible.Kärcher is a brand of high-pressure cleaners, also known as pressure washers, that are used for cleaning outdoor surfaces such as decks, patios, vehicles, and buildings. These cleaners use a high-pressure stream of water, combined with a detergent solution, to remove dirt and grime quickly and efficiently. The Kärcher high-pressure cleaners come in a variety of models, each with their own set of features and attachments. Some common features include adjustable pressure levels, a variety of nozzles for different cleaning tasks, and detergent tanks for easy application of cleaning solutions. The basic principle of High Pressure Cleaner is it uses a pump to increase the pressure of the water and also can be combined with a detergent for cleaning. They are used for cleaning heavy dirt and grime on surfaces such as concrete, brick, wood, and metal. The high pressure and the cleaning solution work together to remove dirt and stains that cannot be removed with a regular garden hose. Kärcher also have a range of pressure washer models, which can include electric, petrol and diesel engine driven. The electric pressure washers are good for domestic and light commercial use while the petrol and diesel pressure washer have higher pressure and flow rates and are suitable for heavy-duty cleaning tasks.
