Karcher High Pressure Cleaner HD 7/17 M *EU 400V 3PH 50HZ
HIGH PRESSURE WASHER HD 7/17 M

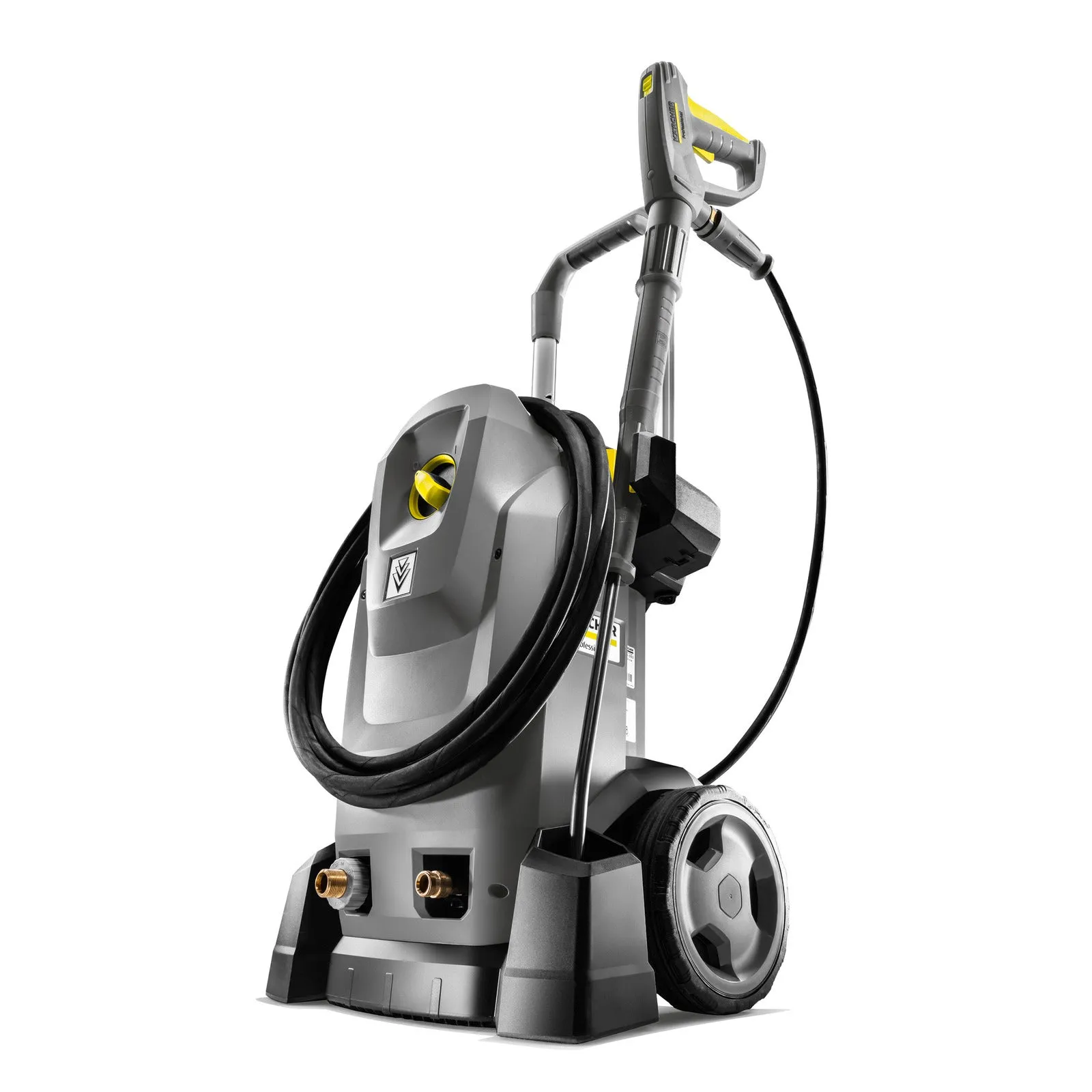

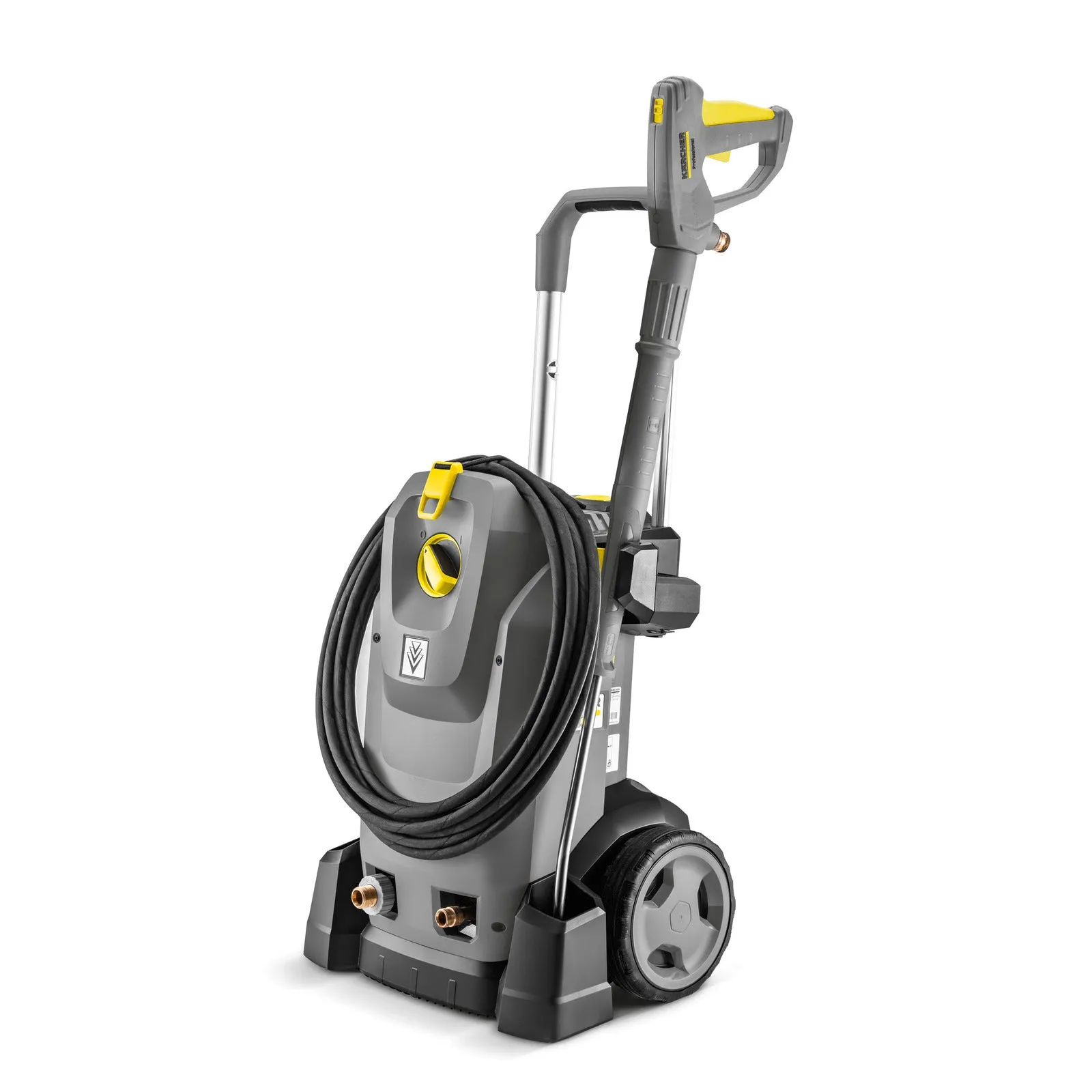

The HD 7/17 M mobile high-pressure cleaner features a robust 3-piston axial pump with hardened stainless steel pistons, automatic pressure relief and a reliable three-phase motor.
Reliable and powerful, compact and mobile: our unheated Karcher HD 7/17 M high-pressure cleaner with three-phase motor combines a long service life, very easy servicing, maximum flexibility and comfortable working in one highly efficient machine which is designed for vertical and horizontal operation. The EASY!Force high-pressure gun, which utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, and the EASY!Lock quick-release couplings, which enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity, ensure you can work without tiring and save on attachment and removal time. Thanks to new pump technology, energy efficiency and cleaning performance is increased by around 20%. An effective automatic pressure relief feature is integrated to prevent high-pressure components from being damaged even in stand-by operation. Clever storage options for the various accessories are likewise available as standard – from the spray lance hanging hook for stowing during short breaks from working and a nozzle compartment for the rotary nozzle, through to a holder for the optional cup foam lance.
FEATURES AND BENEFITS
High-quality equipment
- Automatic pressure relief for protecting the components extends their life.
- Powerful, 2-pole, air-cooled electric motor.
- High-quality brass cylinder head.
Flexible operation
- For vertical and horizontal operation.
- Maximum stability during horizontal operation as the wheels do not touch the floor.
Outstanding mobility
- The push handle, which can be retracted at the touch of a button, increases the compactness of the machine and reduces the spatial requirement.
- Can be easily stored in service vehicles.
- Integrated storage possibilities reduce the set-up times.
Clever accessory storage
- Holder for the cup foam lance.
- EASY!Lock TR20 permits storage of the Power nozzle or a surface cleaner directly at the machine.
- Practical nozzle compartment for storing the rotary nozzle.
Easy servicing
- Easy access to the cylinder head through the open part at the bottom of the machine.
- Quick access to the electrical box by simple removal of the machine cover.
- Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
Effortless and time-saving solutions
- Fatigue-free EASY!Force high-pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Increased energy efficiency
- Newly developed 3-piston axial pump with considerably reduced flow and pressure losses.
- 20% increase in cleaning performance and energy efficiency.
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 700 |
| Working pressure (bar/MPa) | 170 / 17 |
| Max. pressure (bar/MPa) | 255 / 25,5 |
| Connected load (kW) | 4,2 |
| Connection cable (m) | 5 |
| Weight (with accessories) (kg) | 31,6 |
| Weight incl. packaging (kg) | 34,9 |
| Dimensions (L × W × H) (mm) | 400 x 455 x 700 |
Equipment
- Spray gun, EASY!Force
- High-pressure hose, 10 m, Premium quality
- Spray lance, 840 mm
- Power nozzle
- Pressure switch-off
Why Kärcher makes a difference Whether gentle treatment or powerful cleaning – Kärcher high-pressure cleaners offer the perfect solution for every cleaning task. Where previously dirt dominated, now there is nothing but cleanliness. Kärcher adds value to your environment and gives back value: old becomes new, shabby becomes chic. Passionate engineering, the highest quality requirements and decades of experience in the development of innovative high-pressure cleaners make this possible.Kärcher is a brand of high-pressure cleaners, also known as pressure washers, that are used for cleaning outdoor surfaces such as decks, patios, vehicles, and buildings. These cleaners use a high-pressure stream of water, combined with a detergent solution, to remove dirt and grime quickly and efficiently. The Kärcher high-pressure cleaners come in a variety of models, each with their own set of features and attachments. Some common features include adjustable pressure levels, a variety of nozzles for different cleaning tasks, and detergent tanks for easy application of cleaning solutions. The basic principle of High Pressure Cleaner is it uses a pump to increase the pressure of the water and also can be combined with a detergent for cleaning. They are used for cleaning heavy dirt and grime on surfaces such as concrete, brick, wood, and metal. The high pressure and the cleaning solution work together to remove dirt and stains that cannot be removed with a regular garden hose. Kärcher also have a range of pressure washer models, which can include electric, petrol and diesel engine driven. The electric pressure washers are good for domestic and light commercial use while the petrol and diesel pressure washer have higher pressure and flow rates and are suitable for heavy-duty cleaning tasks.
