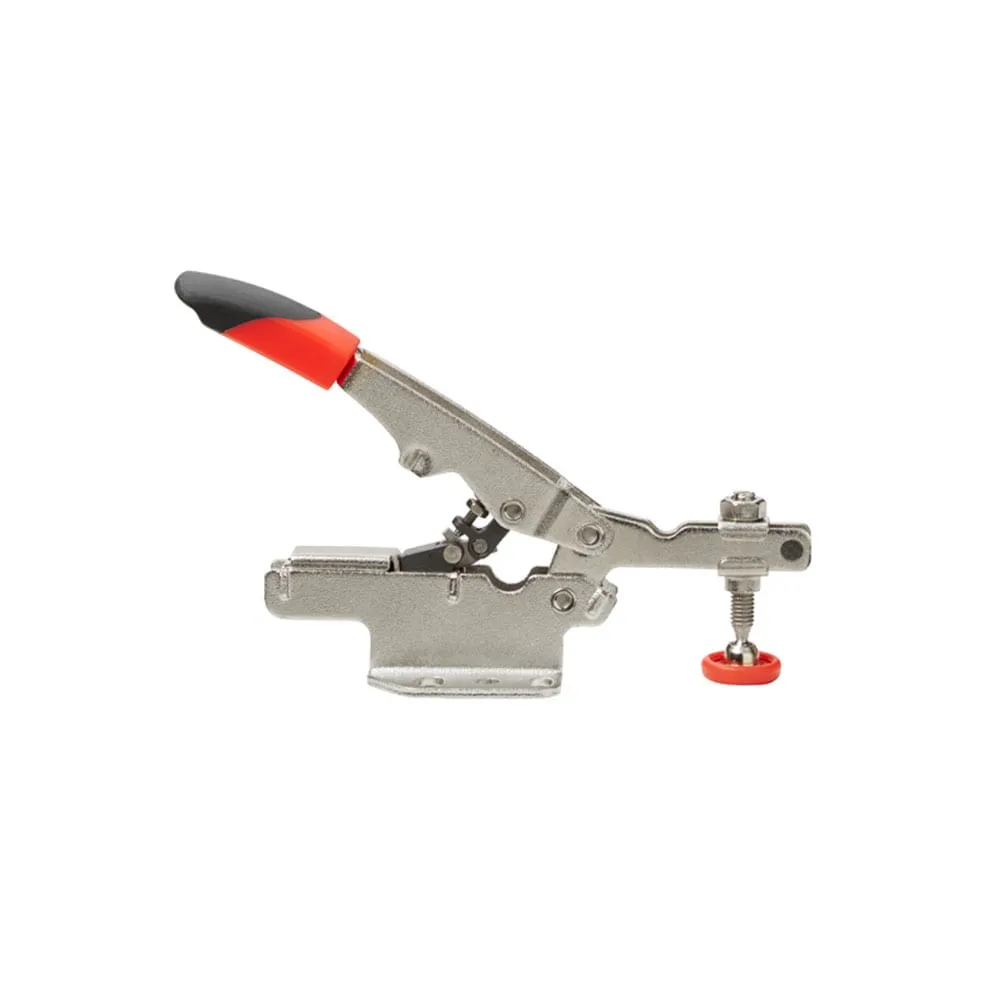

TC-HH20 Auto-Adjust Toggle Clamp with Auto-Adjust technology offers an adjustable range of clamping pressure between 25 to 250 lbs * Durable construction with a holding capacity of 450 lbs. Allows for fast setups and consistent clamping pressure.

*Variable and dependent on spindle and pressure screw setting.

FEATURES

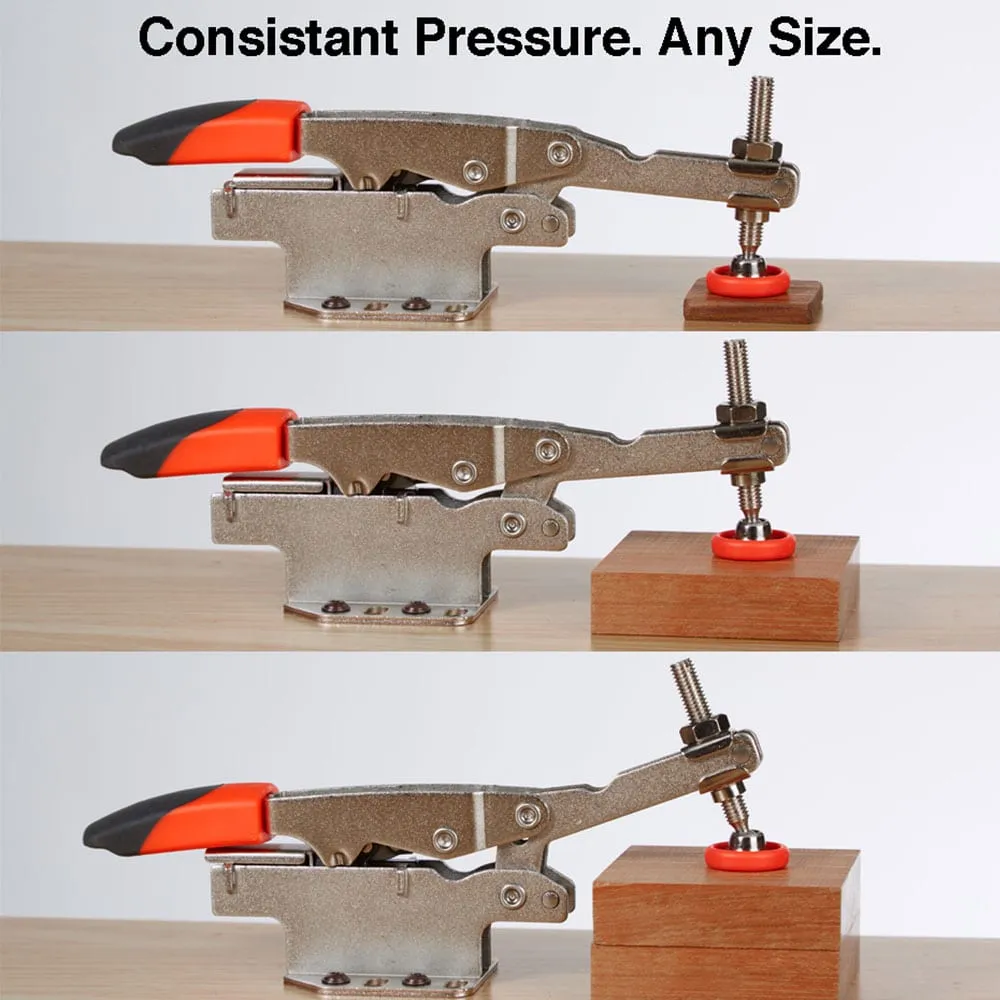

Auto-Adjust: Armor’s Auto-Adjust technology automatically adjusts to variations in workpiece dimensions while maintaining consistent clamping pressure.

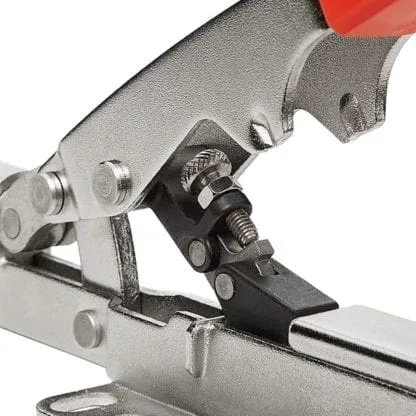

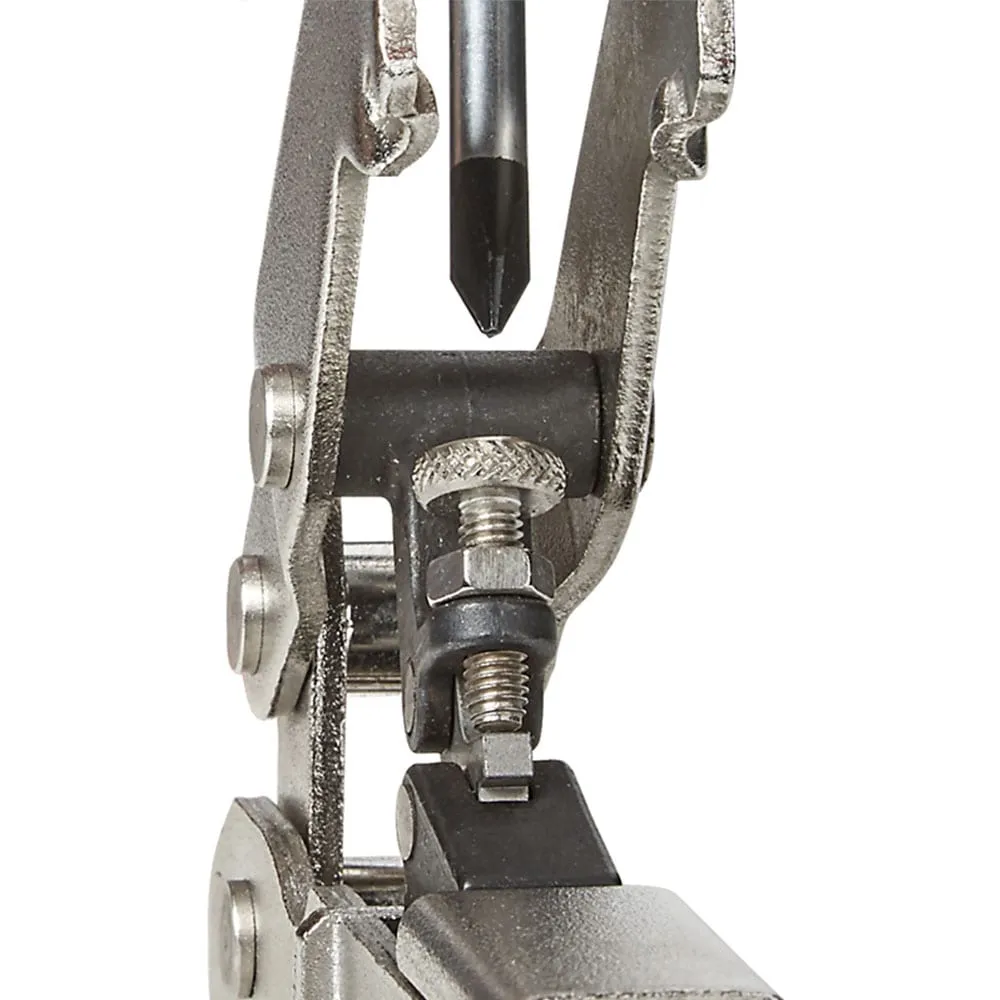

Adjustable Clamping Pressure: The integrated clamping pressure adjustment screw is used to create a wide range of clamping pressures. Rotate the adjustment screw clockwise to decrease the pressure and counterclockwise to increase it.
Horizontal Base Plate: Horizontal plate features adjustable mounting holes on the base plate to accommodate most standard toggle mounting patterns.
Large Soft-Grip Handle: Features soft insets for maximum grip and comfort.

Use product only as intended. Modification or use in conjunction with another product or bracket for resale is prohibited. Please contact Armor with any integration resale applications.

Model No: STC-HH20
Opening: 0-1 13/16″
Adjustable Clamping Force: 25 to 250 lbs.
Holding Capacity: 450 lbs.
Approx. Weight: 0.6 lbs.
Fastener: 3/16″ or M5
